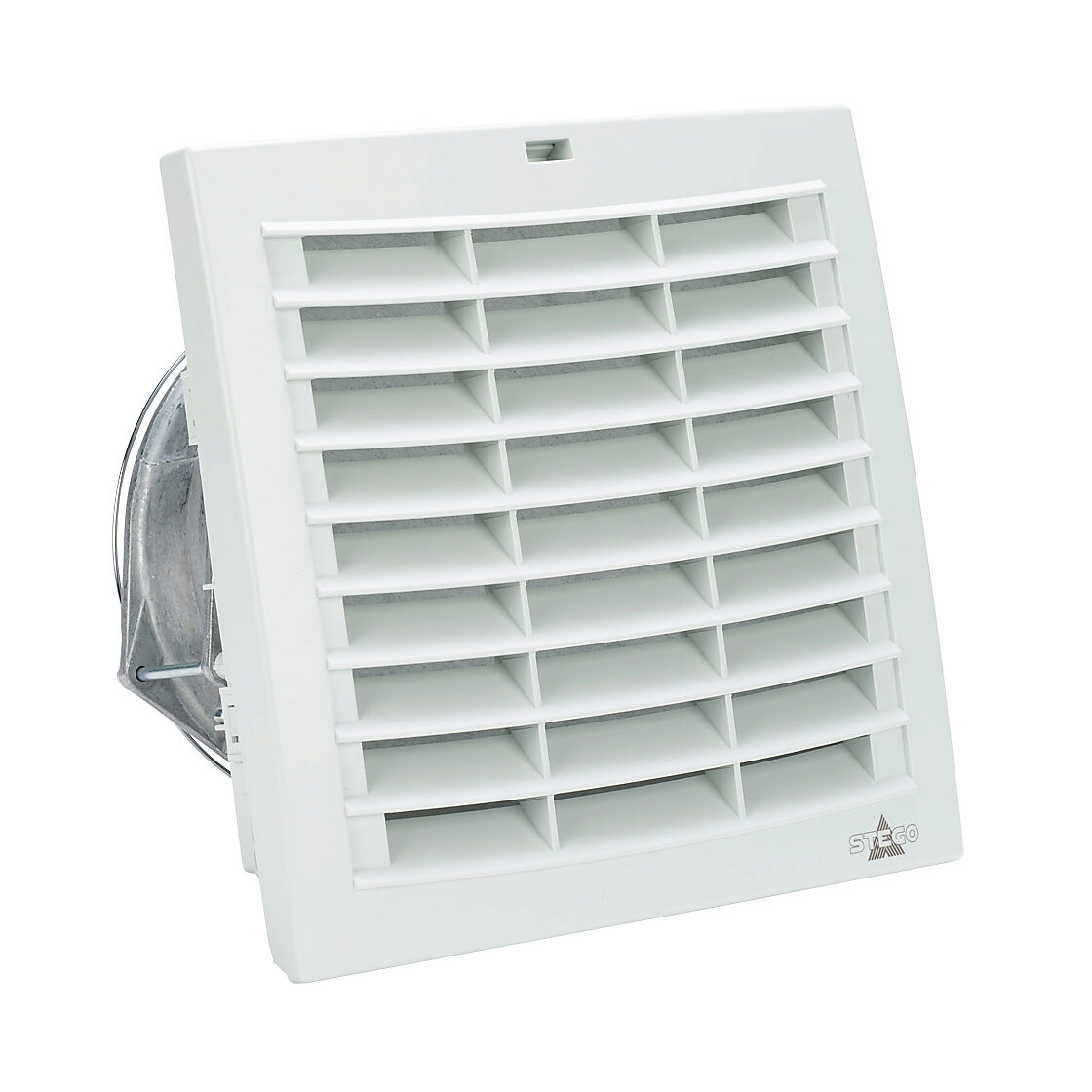

Name: Fan Kit 018829-40
SKU: 3557
Availability: InStock

Estop PB

HMI Mple 10 in HMI5100Bv2

	Series	Filter Fan Plus FPO
	Airflow Direction	Exhaust
	Item	Fan
	Mounting	Side
	With Air Flaps	No
	Filter Media	G3 (coarse) filter mat
	Free Airflow	126 CFM
	Airflow with Grill and Filter(s)	86 CFM
	Operating Voltage	115 VAC
	Frequency	60 Hz
	Power Consumption	38W
	Current Draw	330 mA
	Electrical Connection	3-pole clamp for AWG 14 wire, 7.1 in-lb maximum clamping torque
	Maximum Static Pressure	139Pa
	Operating Temperature	-13 to 158 deg F
	Average Noise Level	53 dBA
	NEMA Rating	12
	Application	Indoor use only
	IP Rating	IP54
	Enclosure Cutout	6.93 x 6.93in
	Color	RAL 7035 light gray
	Includes	Optional mounting screws
